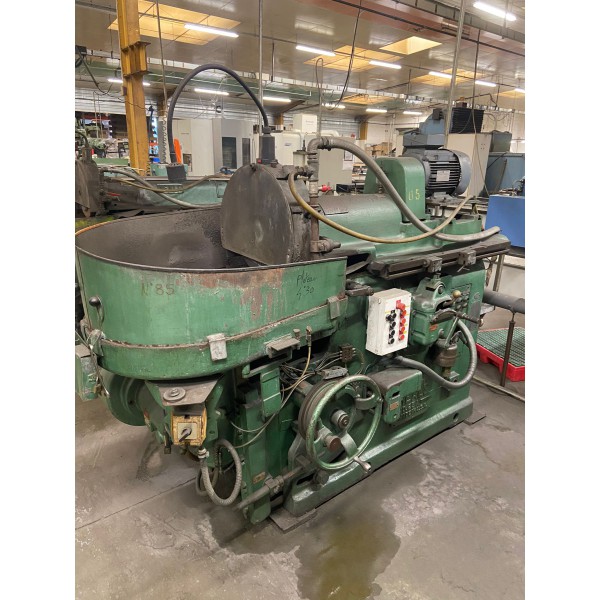

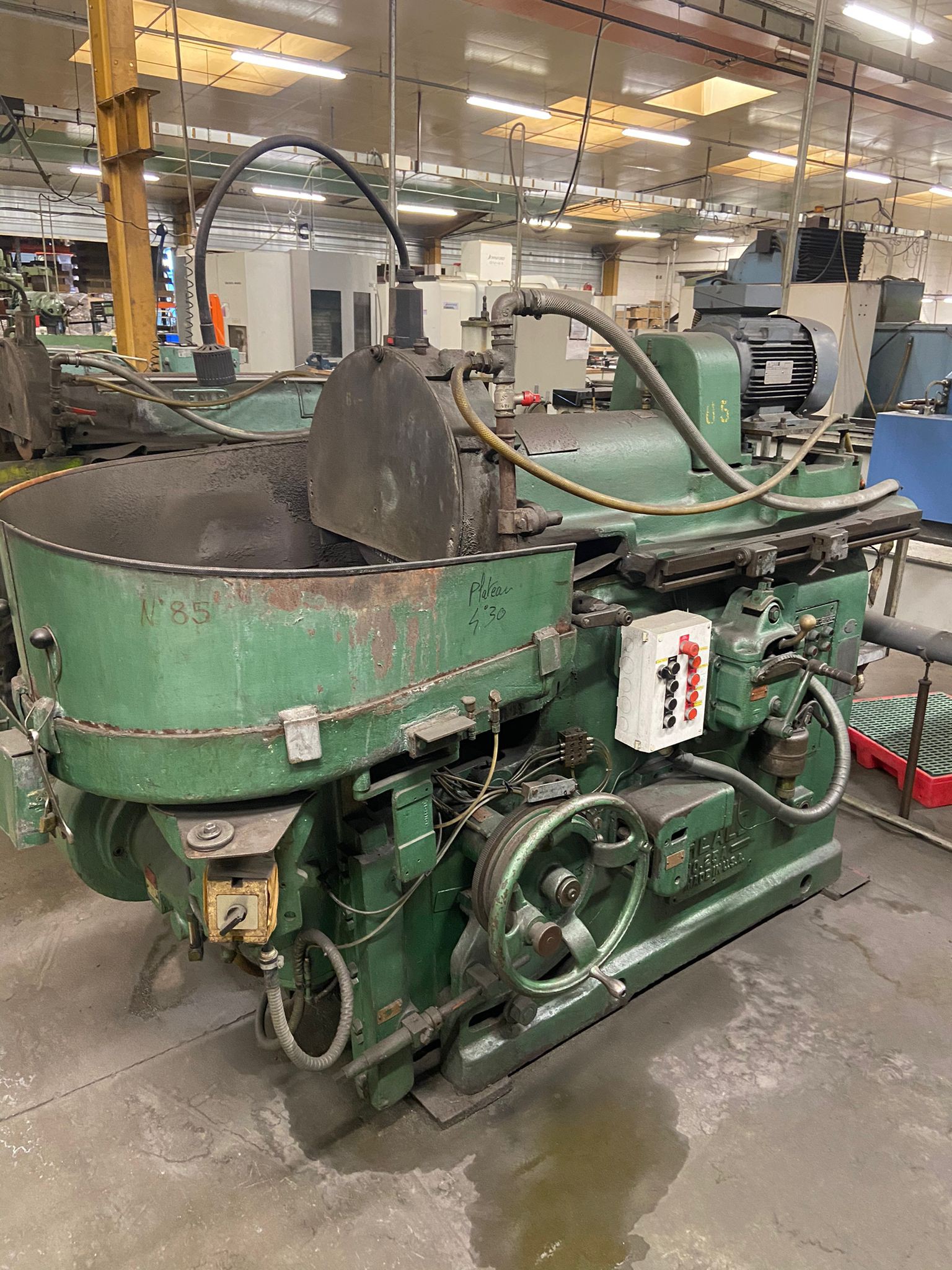

Surface grinder with rotary table HEALD 25A
| Reference: | RP023 |
|---|---|
| Model | 25A |
| Magnetic chuck size (mm) | Ø 760 |
| Wheel dimensions Ø x bore x width (mm) | 460x50x200 |
| Distance between table-wheel axis (mm) | 355 |
| Max Ø (mm) | 960 |
| Spindle speeds (Rpm) | (Table) 29-86 |
| Wheel speeds (Rpm) | 1285 |
| Table swivels (°) | Convexe +/-15 Concave +/-5 |
| Main motor power (Kw) | 7,4 |
| Weight of the machine (T) | 4 |
