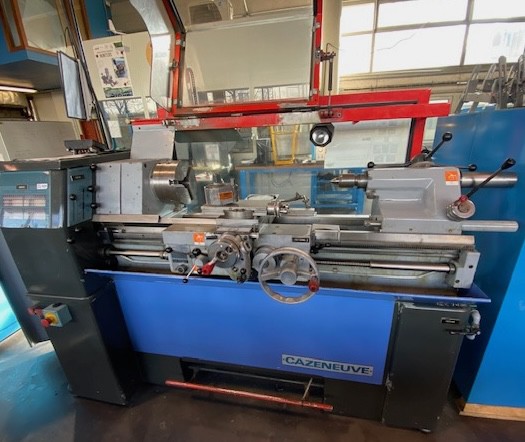

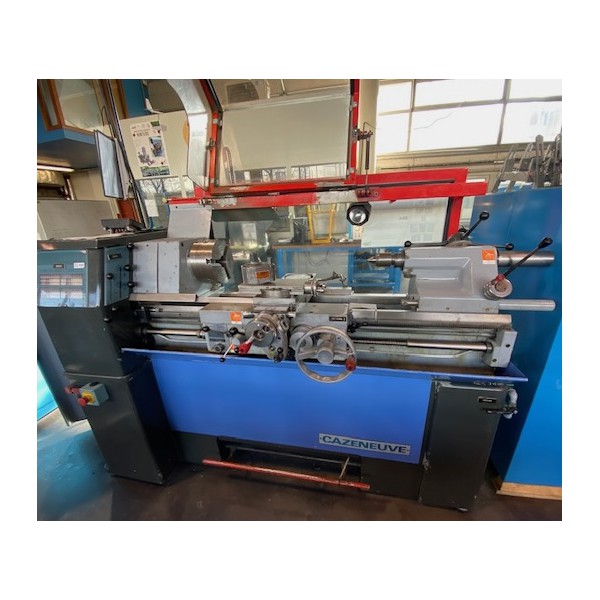

Lathe CAZENEUVE HBX 360 BC
| Reference: | TOU174 |
|---|---|
| Model | HBX 360 BC |
| Ø over the bed (mm) | 360 |
| Spindle bore (mm) | 37 |
| Distance between-centers (mm) | 750 |
| Spindle speeds (Rpm) | VAR 40-2500 |
| Feeding speeds (mm/mn) | 116/0.0125-5,6 |
| Main motor power (Hp) | 7 |
| Machine equipped with : | turret with MULTIFIX Atac. / Tail-stock with drilling device |
| Dimensions LxWxH (mm) | 2000 x 1000 x 1250 |
| Weight of the machine (T) | 1,3 |
