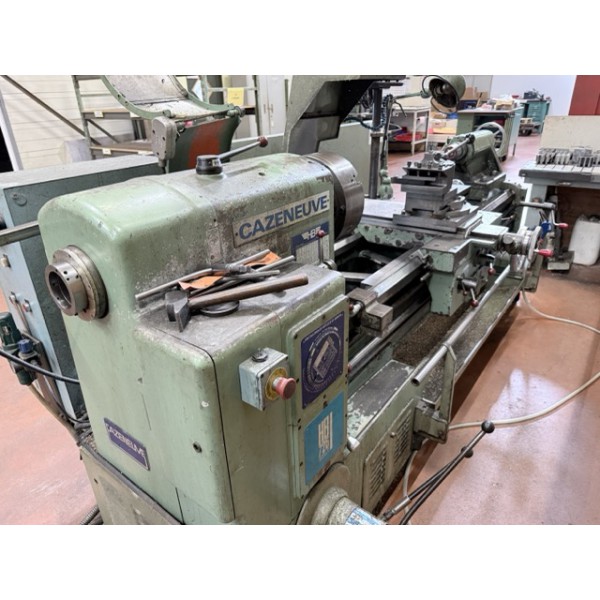

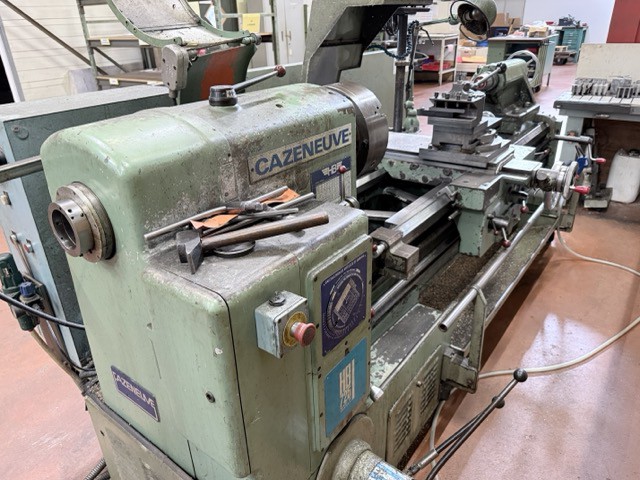

Lathe CAZENEUVE HB 725 x 1500
| Reference: | TOU176 |
|---|---|
| Model | HB 725 |
| Ø over the bed (mm) | 725 |
| Spindle bore (mm) | 82 |
| Distance between-centers (mm) | 1500 |
| Ø over cross-slides (mm) | 400 |
| Spindle speeds (Rpm) | 11-2000 |
| Feeding speeds (mm/mn) | L0.018-11.2 C0.009-5.6 |
| Main motor power (Hp) | 20 |

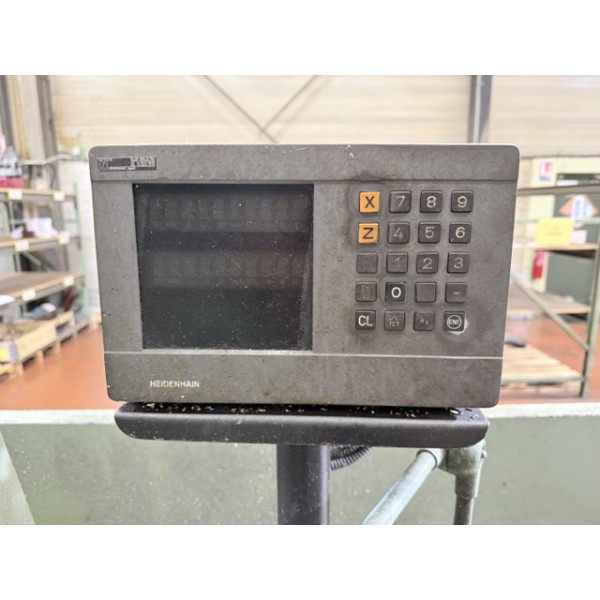

| Machine equipped with : | DRO Heidenhain / MULTIFIX Turret |
| Dimensions LxWxH (mm) | 3200x1300x1300 |
| Weight of the machine (T) | 3 |
