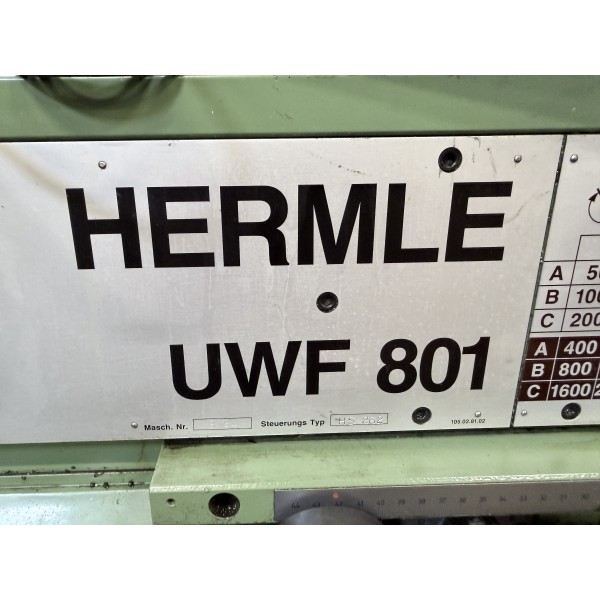

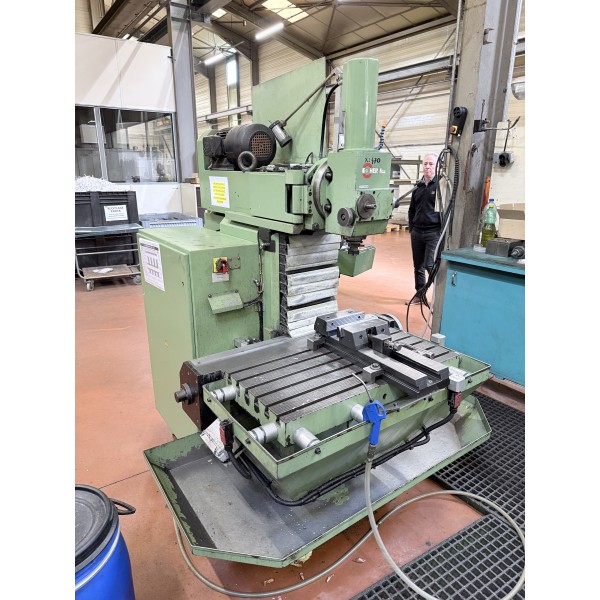

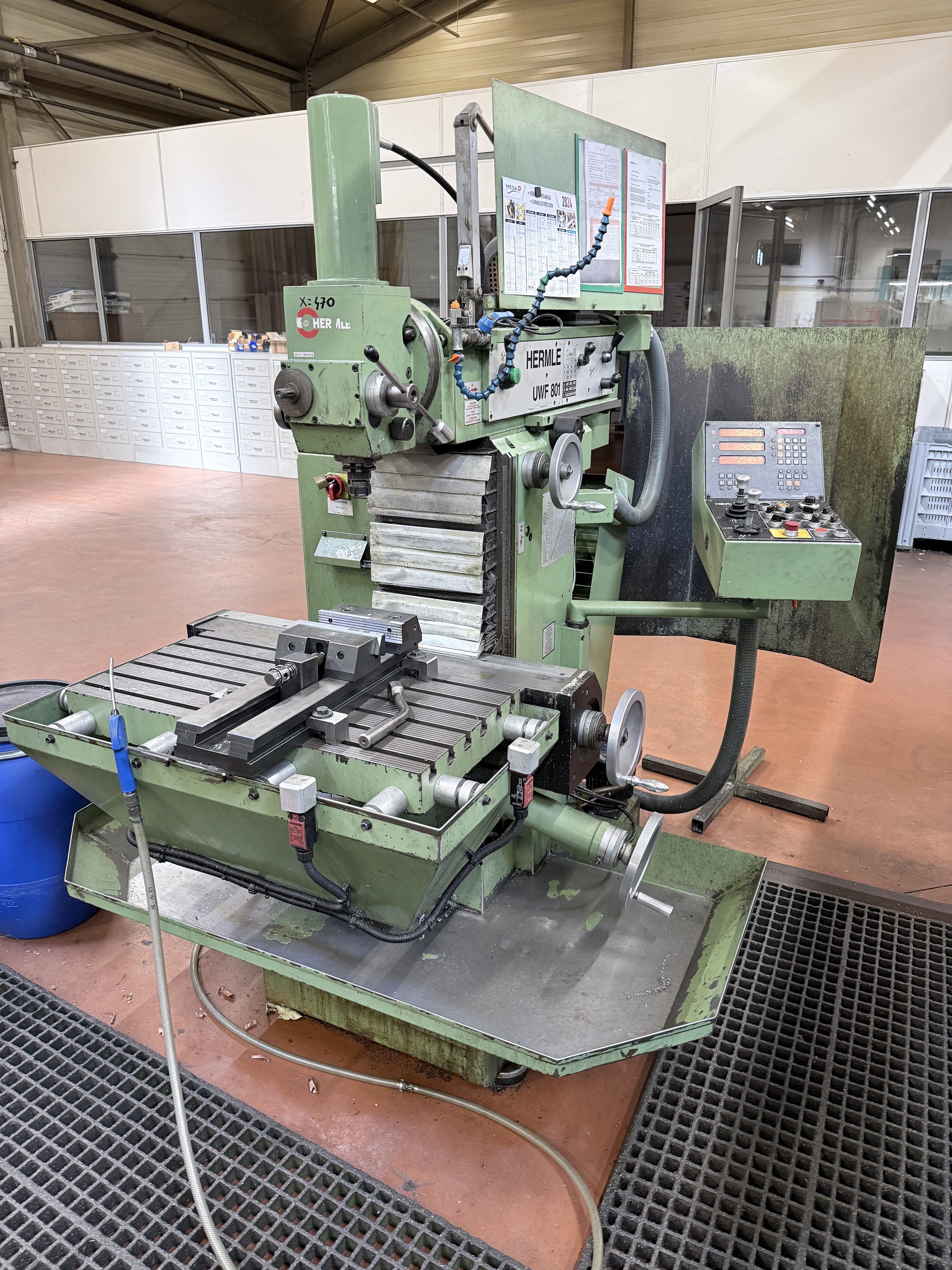

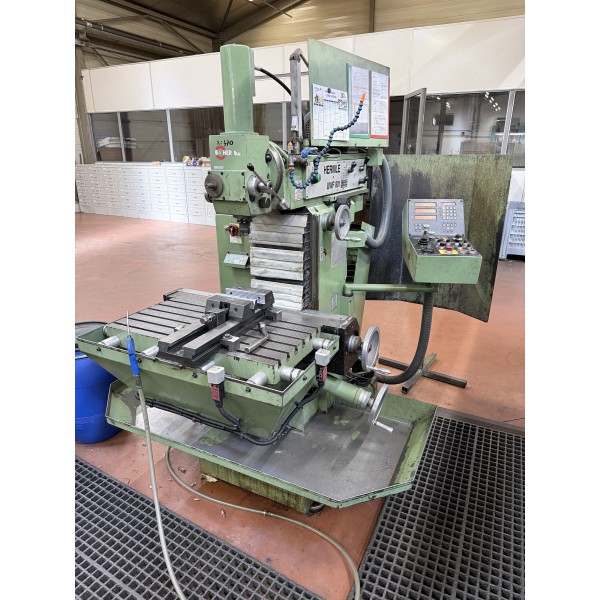

Tool-room milling machine HERMLE UWF 801
| Reference: | FR136 |
|---|---|
| Model | UWF 801 |
| Travels (mm) | X500 Y430 Z400 |
| Table size (mm) | 800x390 |
| Spindle attachment (ST) | 40 |
| Quill (mm) | 80 |
| Spindle speeds (Rpm) | 50-2500 |
| Feeding speeds (mm/mn) | XY 1600 |
| Main motor power (Kw) | 3 |

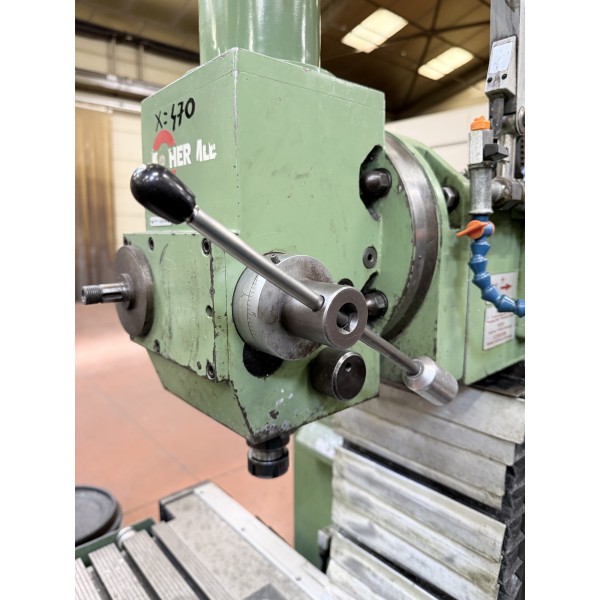

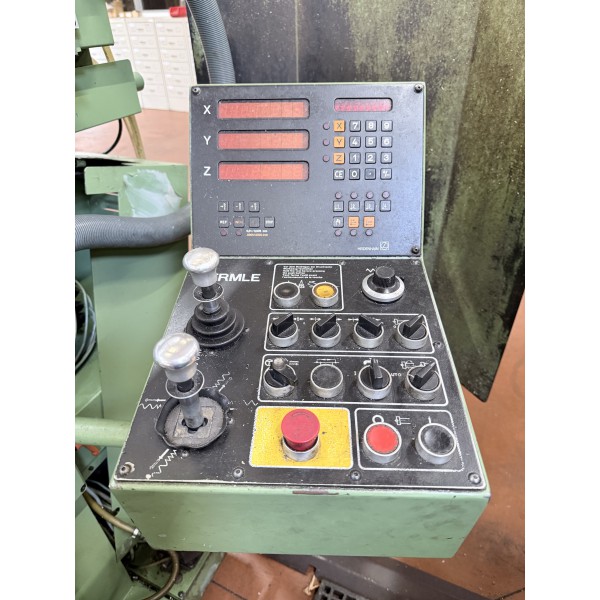

| Machine equipped with : | DRO 3 axis Heidenhain / Swivelling head |
| Dimensions LxWxH (mm) | 2300x2300x1800 |
| Weight of the machine (T) | 1 |
