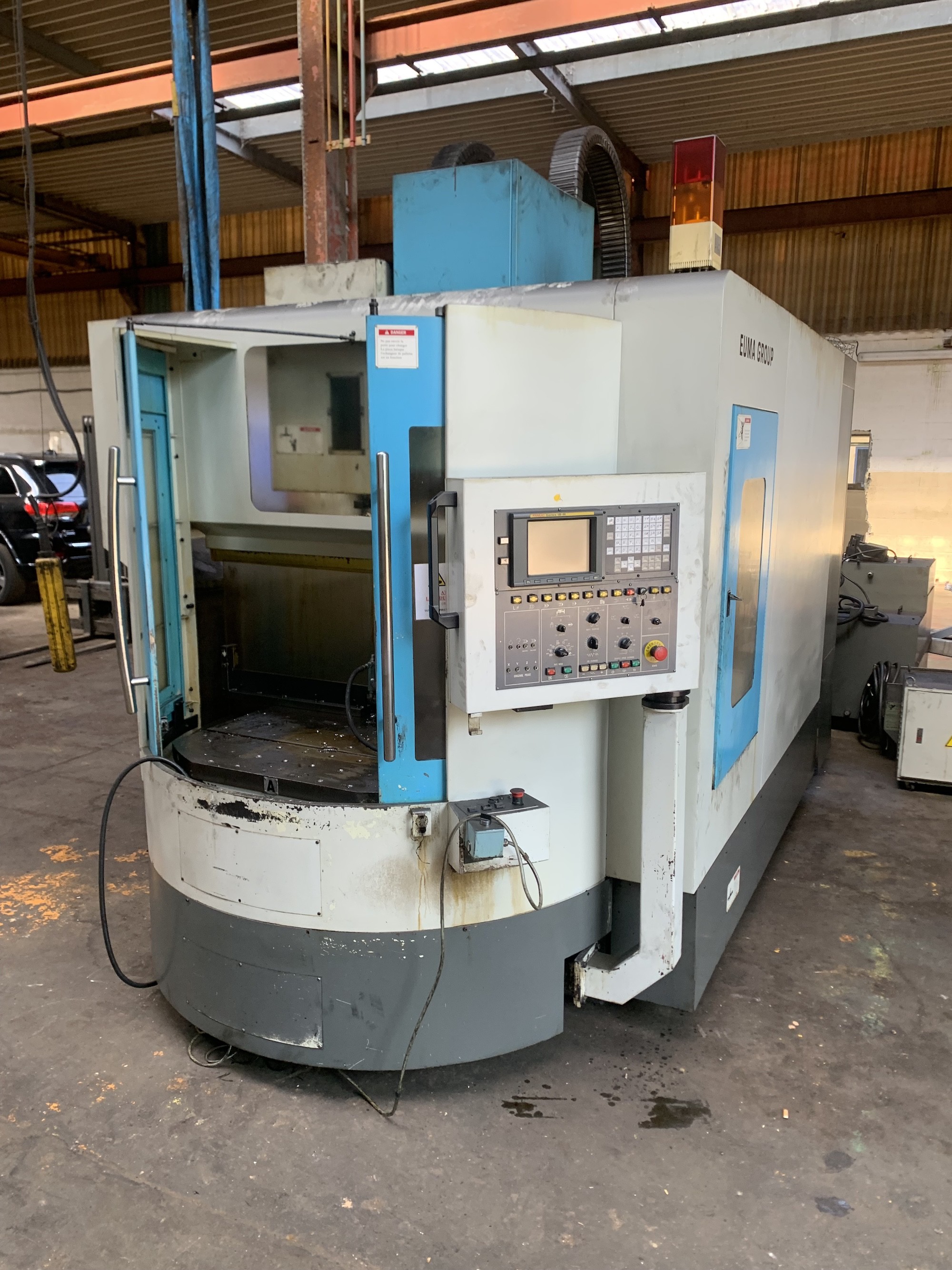

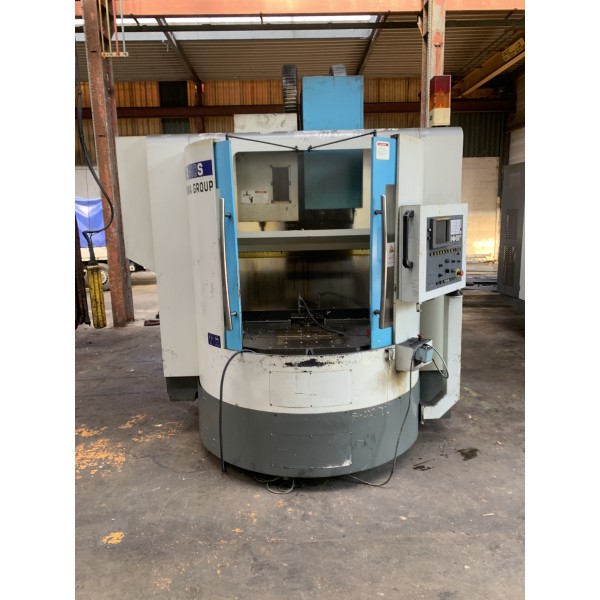

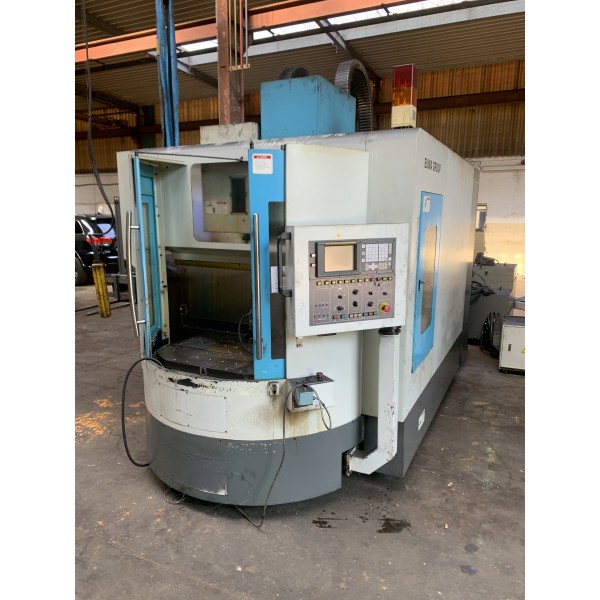

Vertical machining center EUMA ME-810S twin pallets
| Reference: | CUV033 |
|---|---|
| Model | ME-810 S |

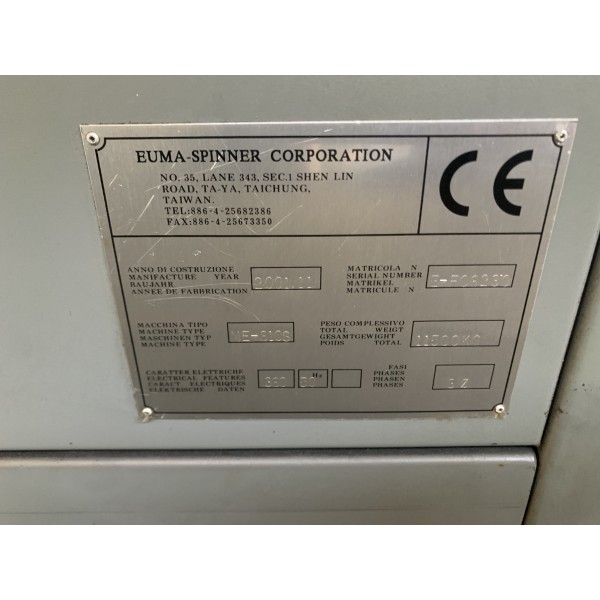

| Serial number | E-F06230 |
| YOM | 11-2001 |
| Travels (mm) | 810 x 520 x 510 mm |
| Table size (mm) | 2x 800x600 |
| Max distance table-spindle noze (mm) | 200-710 |
| Weight admitted (T) | 0,5 |
| ATC | 24 |
| Spindle attachment (BT) | 40 |
| Tool Ø (mm) | 80 |
| Max tool weight (Kg) | 8 |
| Tool length (mm) | 250 |
| Spindle speeds (Rpm) | 8000 |
| Feeding speeds (mm/mn) | XY24/Z20 |

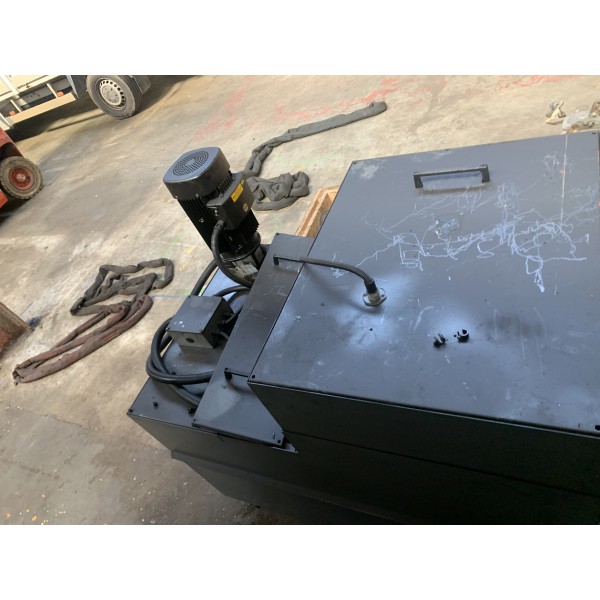

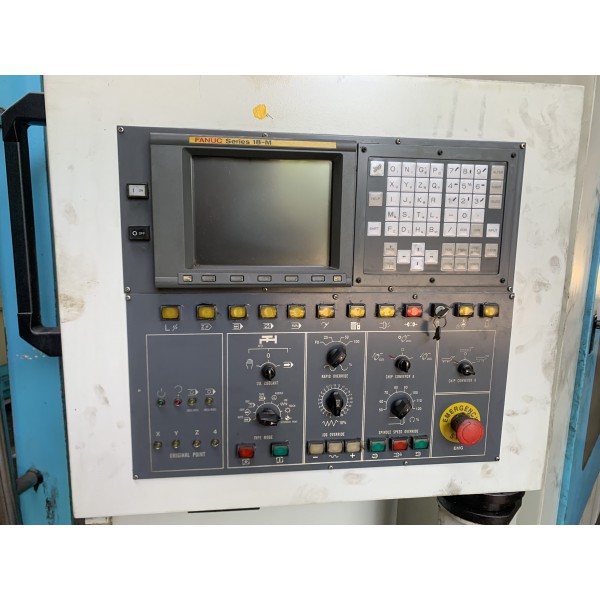

| Machine equipped with : | CNC FANUC 18M-C / Swarf conveyor |
| Weight of the machine (T) | 11,5 |
