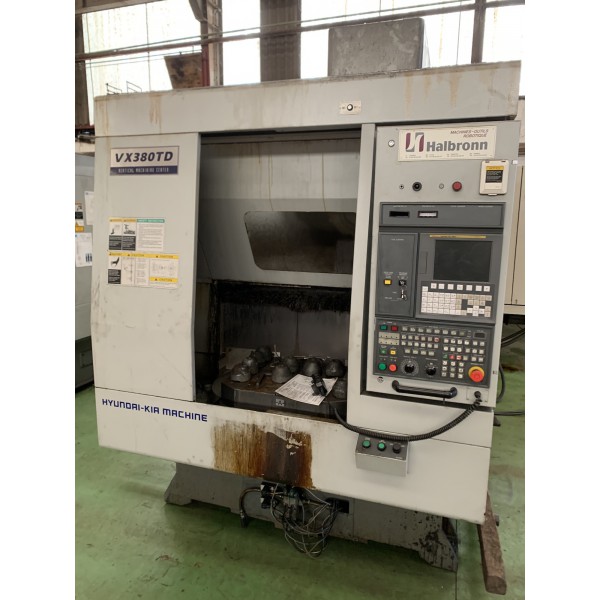

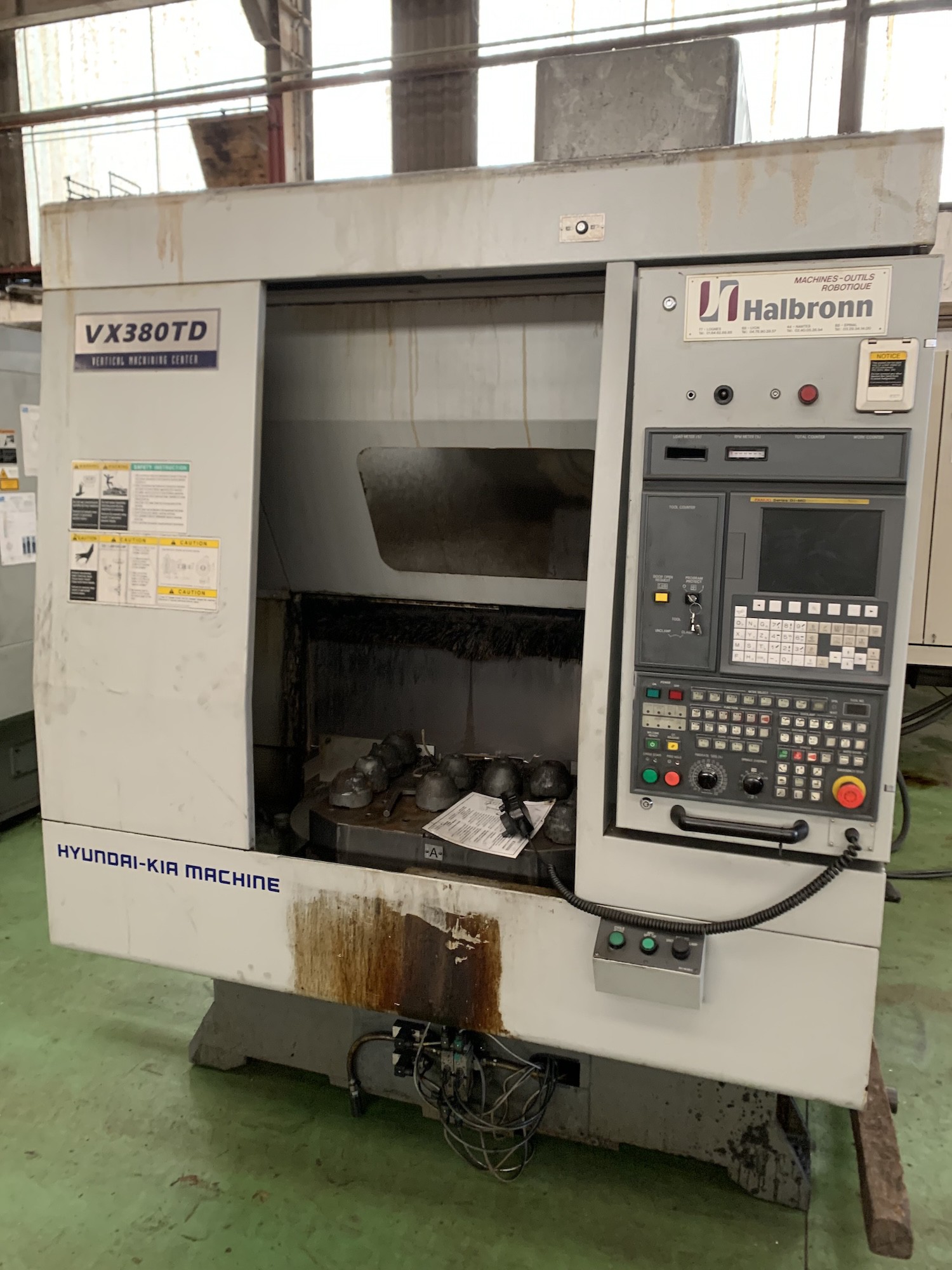

Vertical milling / drilling / tapping machine HYUNDAI KIA VX 380TD
| Reference: | CUV034 |
|---|---|

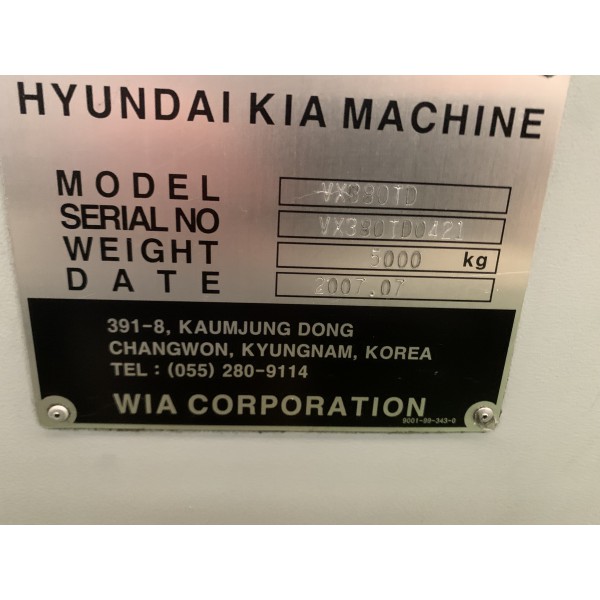

| Model | VX 380 TD |
| YOM | 2006 |
| Travels (mm) | X520 Y360 Z350 |

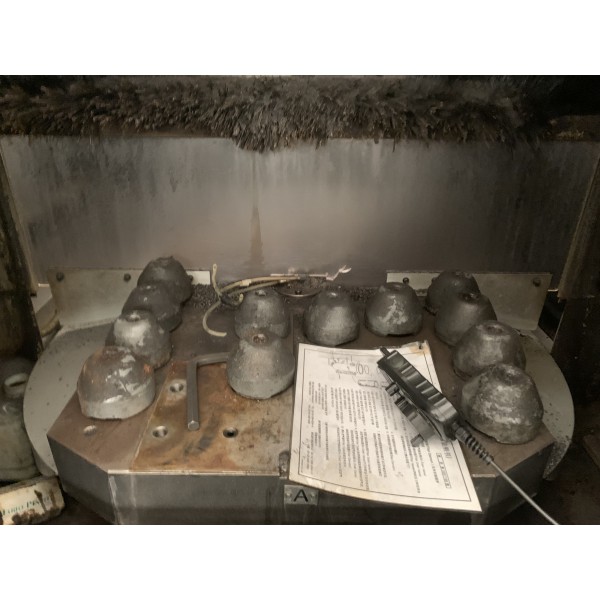

| Pallet size (mm) | 2x 650x400 |
| Max distance table-spindle noze (mm) | 200-550 |
| Weight admitted (T) | 0,250 |
| ATC | 14 |
| Spindle attachment (BT) | 30 |
| Tool Ø (mm) | 80 |
| Max tool weight (Kg) | 3 |
| Tool length (mm) | 200 |
| Spindle speeds (Rpm) | 12000 |

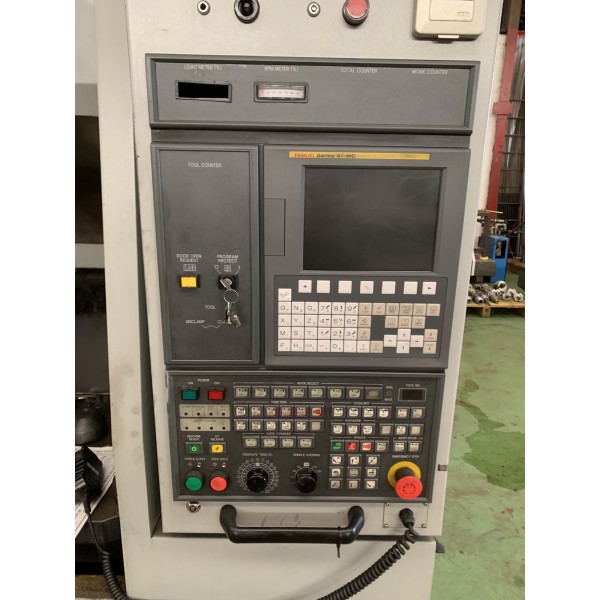

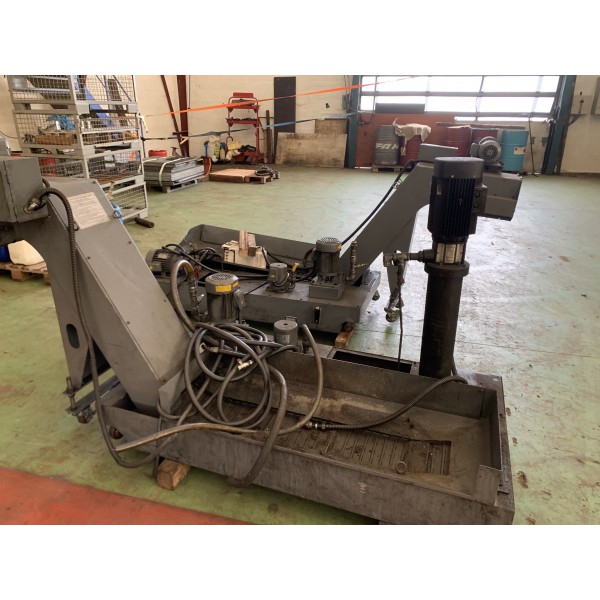

| Machine equipped with : | CNC FANUC Oi-MC / Swarf conveyor |
| Dimensions LxWxH (mm) | 2990x1720x2500 |
| Weight of the machine (T) | 5 |
