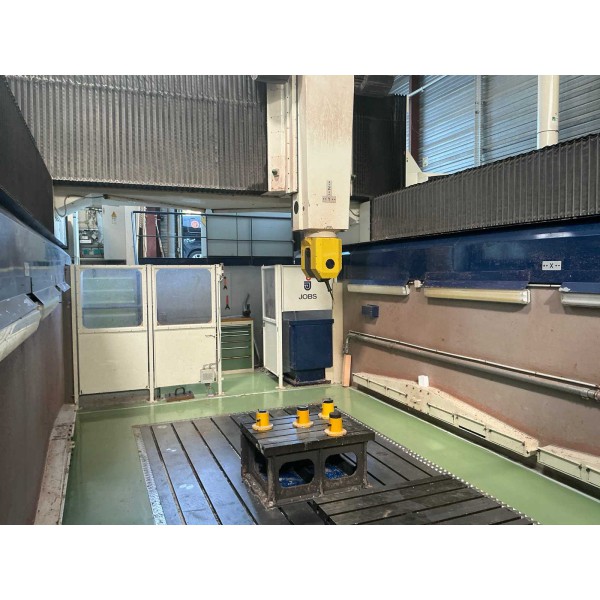

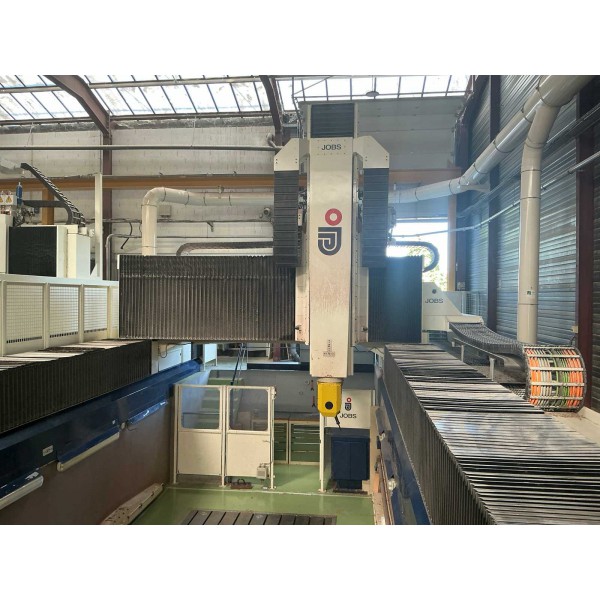

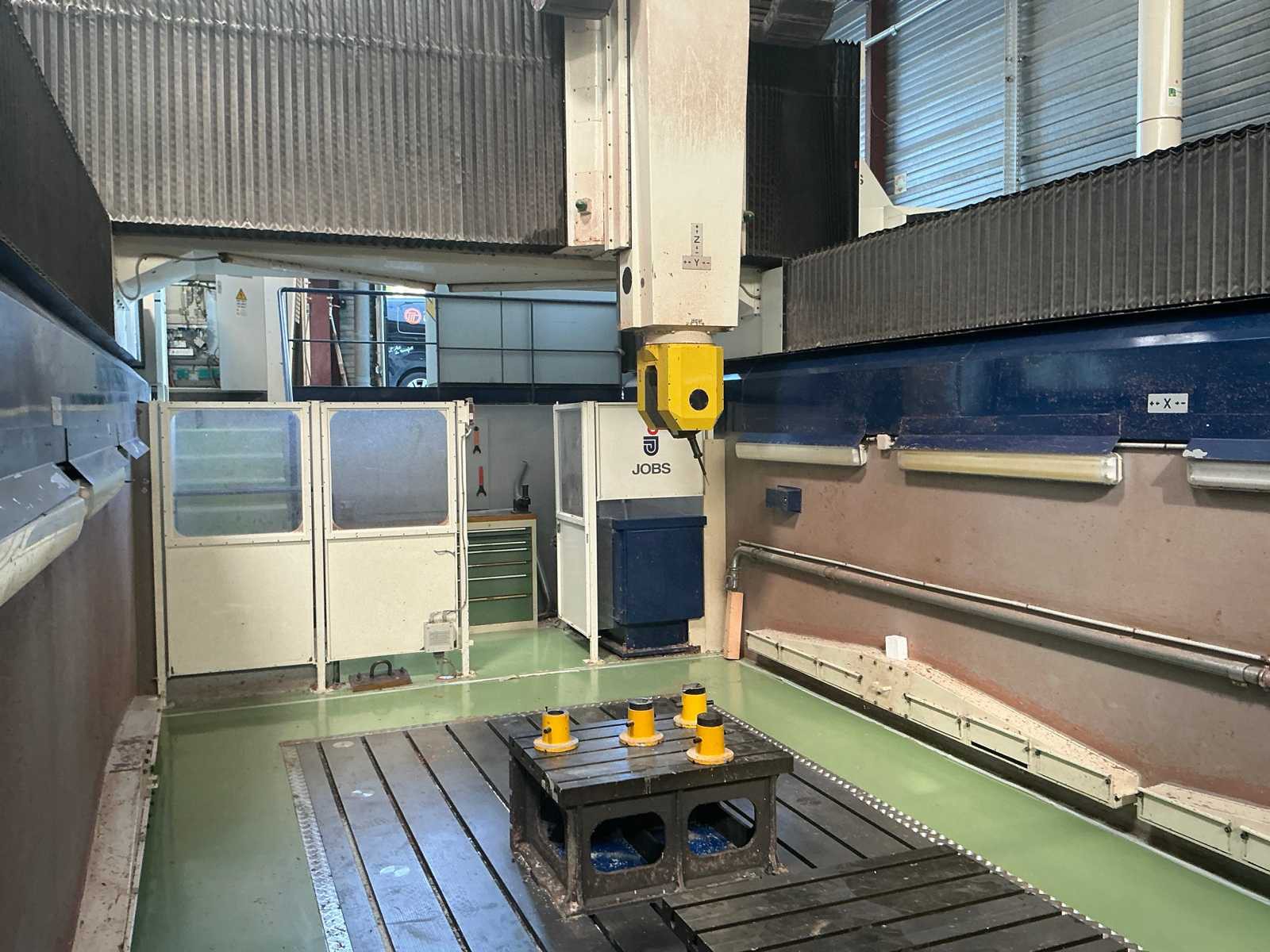

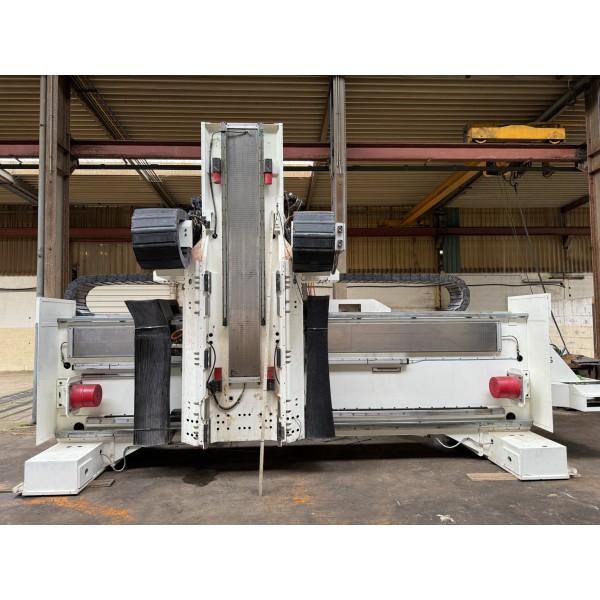

CNC gantry milling machine 5 axis JOBS LINX Design (2007)
| Reference: | CUV036 |
|---|---|
| Model | LINX Design |
| YOM | 2007 |
| Travels (mm) | X7200 Y3200 Z2000 |

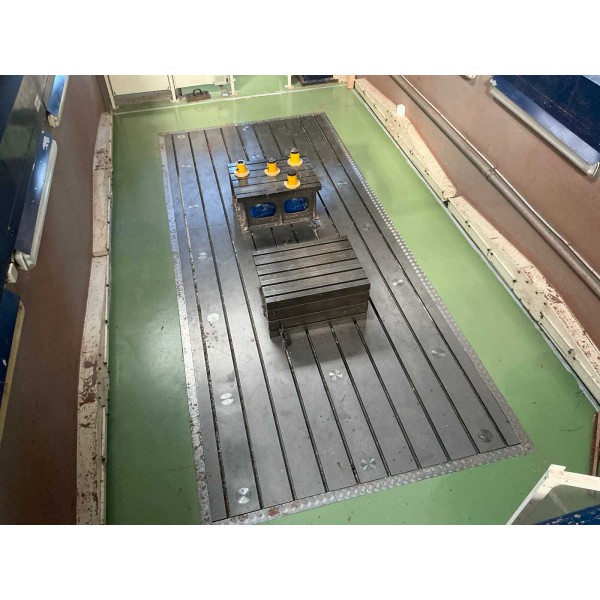

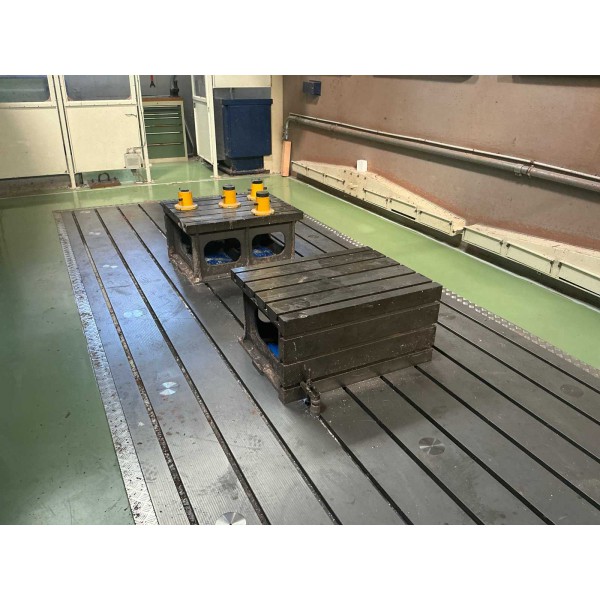

| Table size (mm) | 6000 x 2500 |
| A-C axis (°) | A-200 (+/-100) C-400 (+/-200) |
| ATC | 20 pos. |
| Spindle attachment (Hsk) | 63 |
| Spindle speeds (Rpm) | 24000 |
| Feeding speeds (mm/mn) | XYZ 50000 |
| Main motor power (Kw) | 27 |

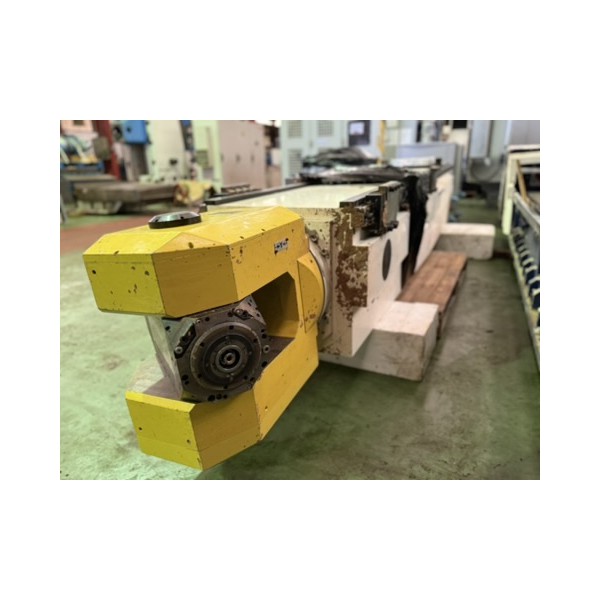

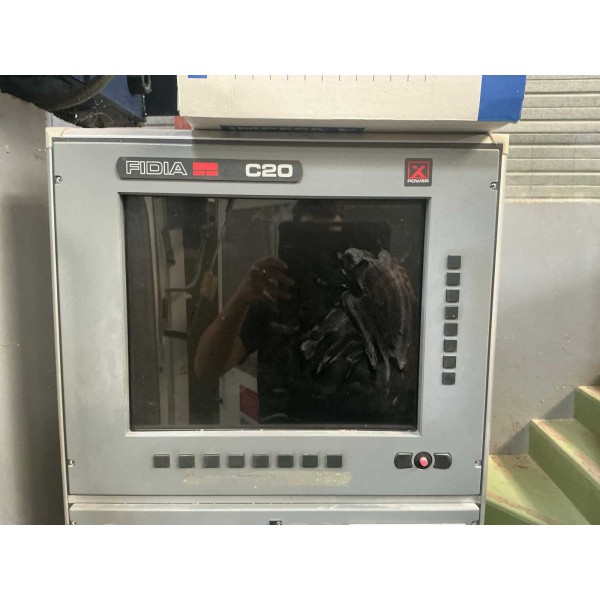

| Machine equipped with : | CNC FIDIA C20 (SIEMENS linear motors) / Head type T3D-1 / Spindle refrigerant system / Tool measuring system |
| Weight of the machine (T) | 52 |
